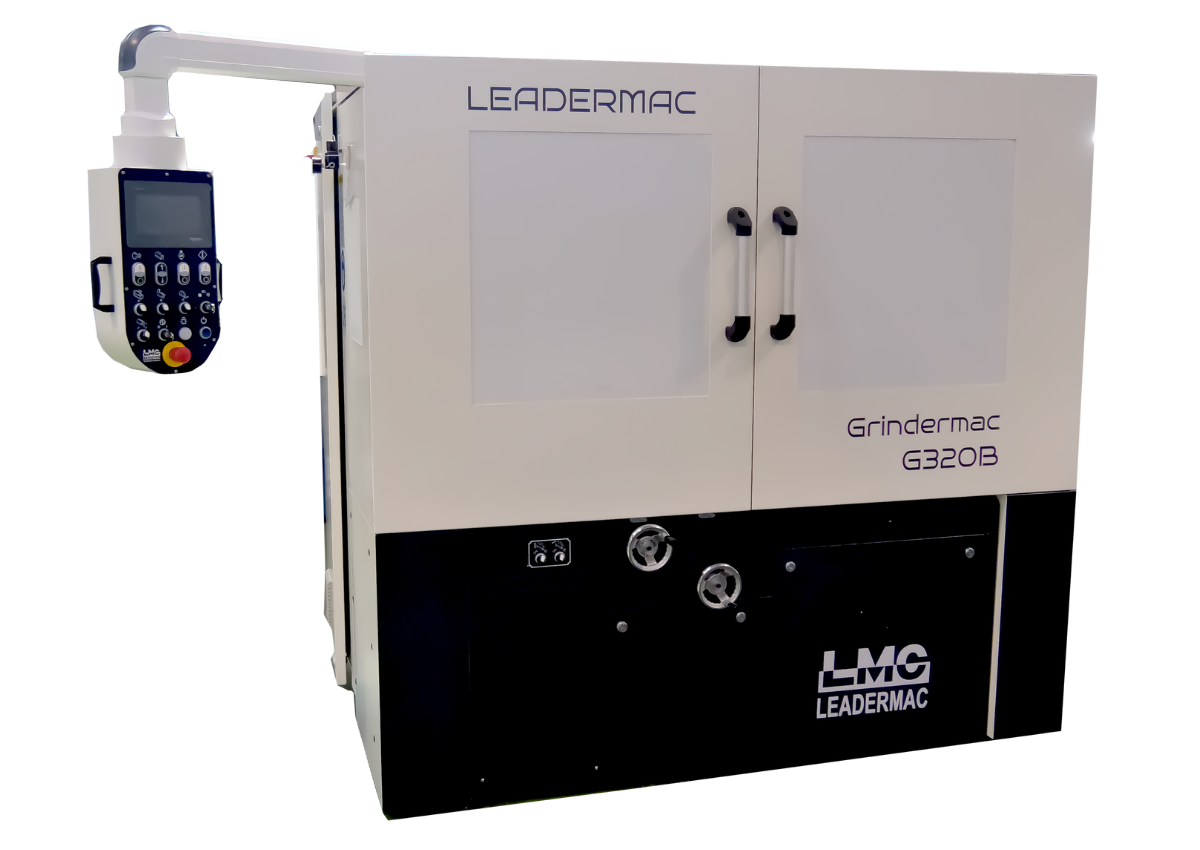

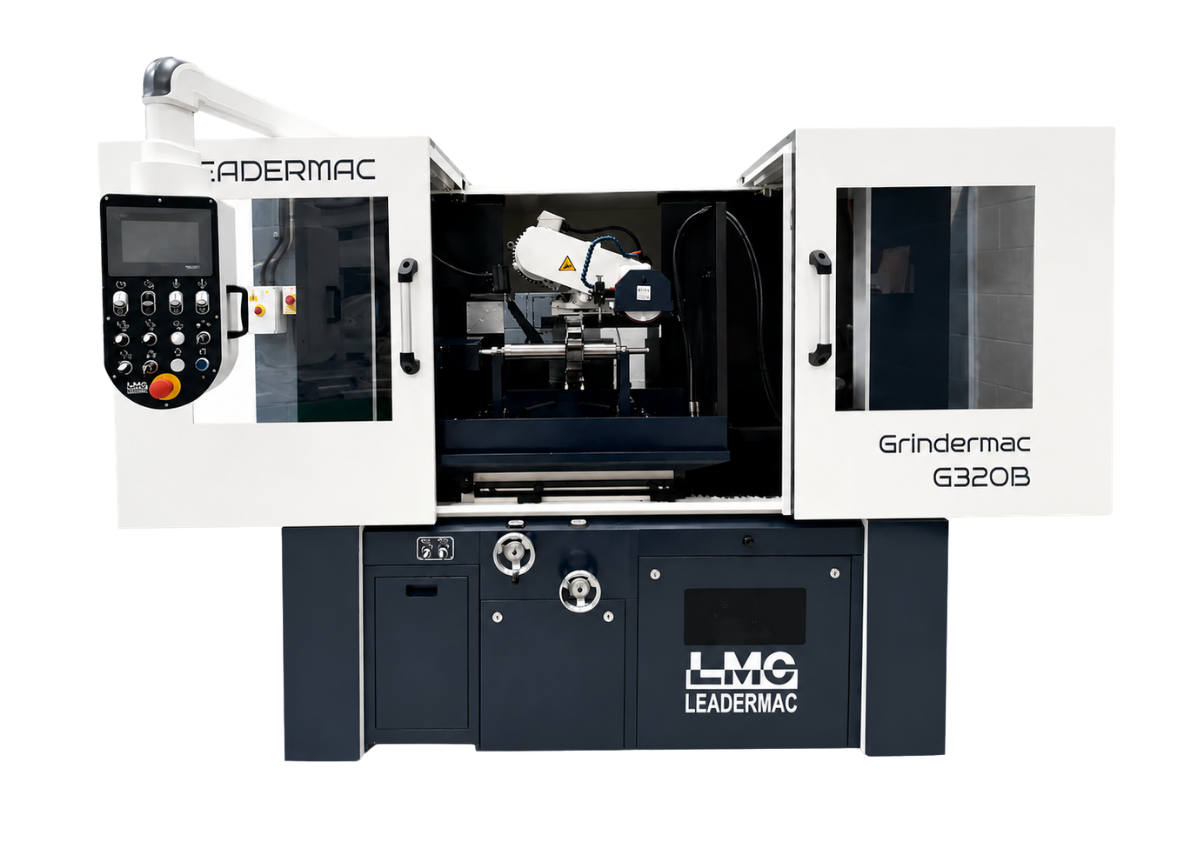

Straight Grinder G320B
The Grindermac G320B automatic cutter grinder is an advanced grinder, featuring fully automatic grinding operation. With the PLC control, high grinding accuracy is obtainable.

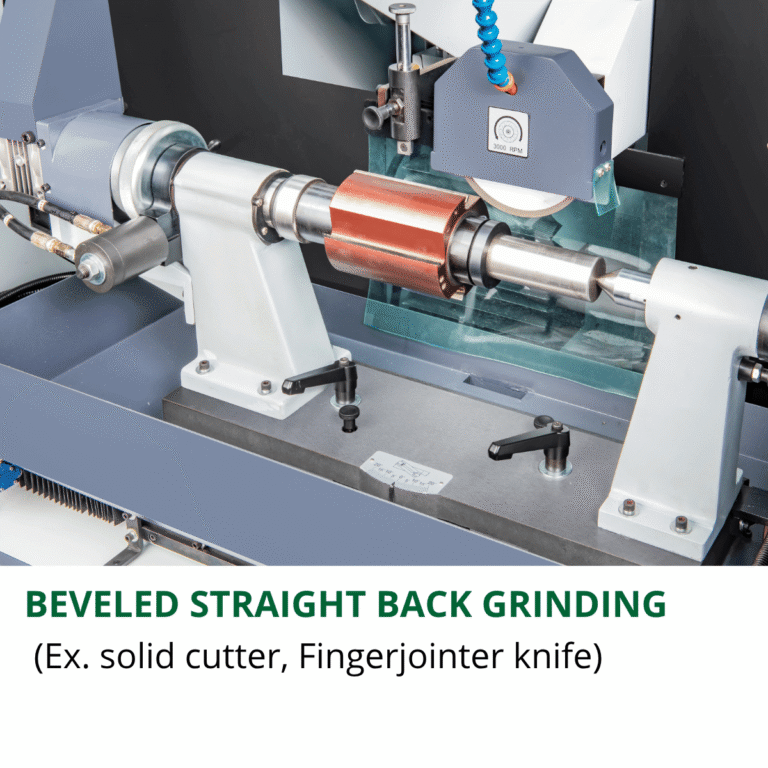

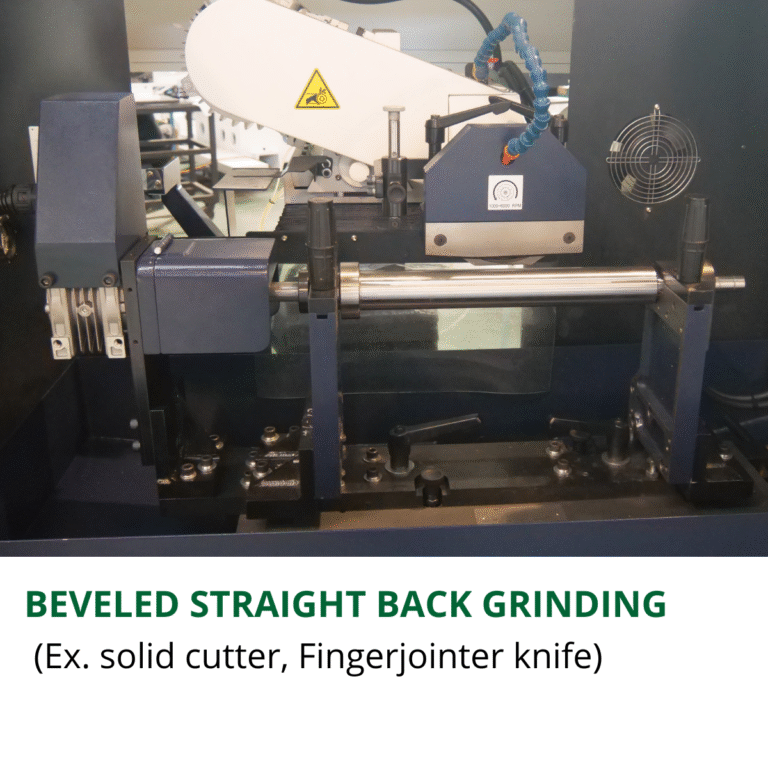

TO DO FACE GRINDING FOR SOLID CUTTERS
IN STOCK IN THE UK
Straight Grinder G320B
The Grindermac G320B automatic cutter grinder is an advanced grinder, featuring fully automatic grinding operation. With the PLC control, high grinding accuracy is obtainable.
TO DO FACE GRINDING FOR SOLID CUTTERS
IN STOCK IN THE UK
OUTSTANDING FEATURES
- Cutter rotation is automatically controlled by PLC for high accuracy.
- Max Weight 120 Kg

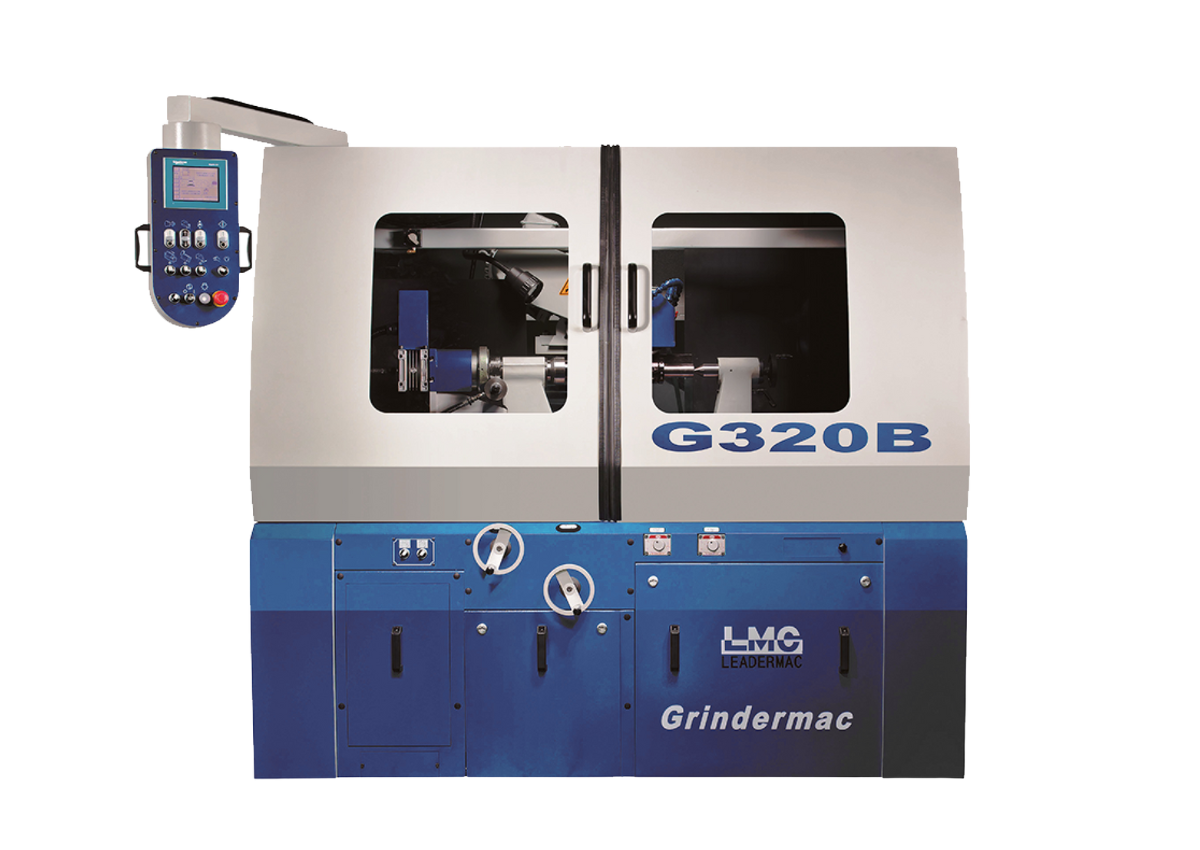

- Sliding doors instead of tilting doors (linear-guide type, with 4 pcs)
- Grinding head movement is automatically controlled by PLC, ensuring high grinding accuracy.
- Humanified touch-sensing screen allows for convenient operation.
- Multiple micro-switches protection upgrades operational safety.
- Hydraulic system controls the slide movement rightward / leftward, featuring maximum stability.
- Automatic or manual movement of slide is quick to change.
- The entire machine is thoroughly protected by safety guards to achieve higher safety.
- Fast cutterhead change saves considerable time while upgrading efficiency.

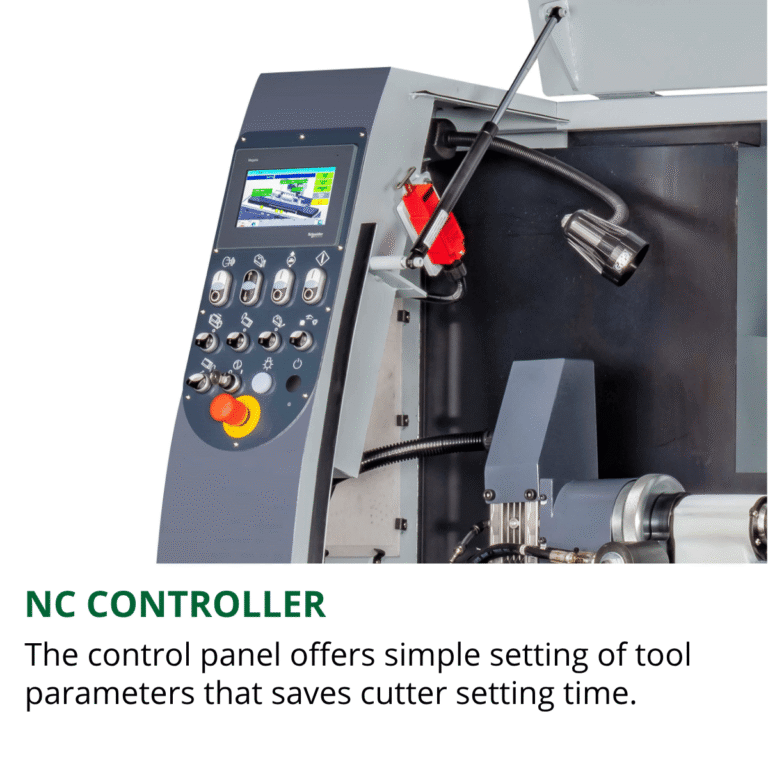

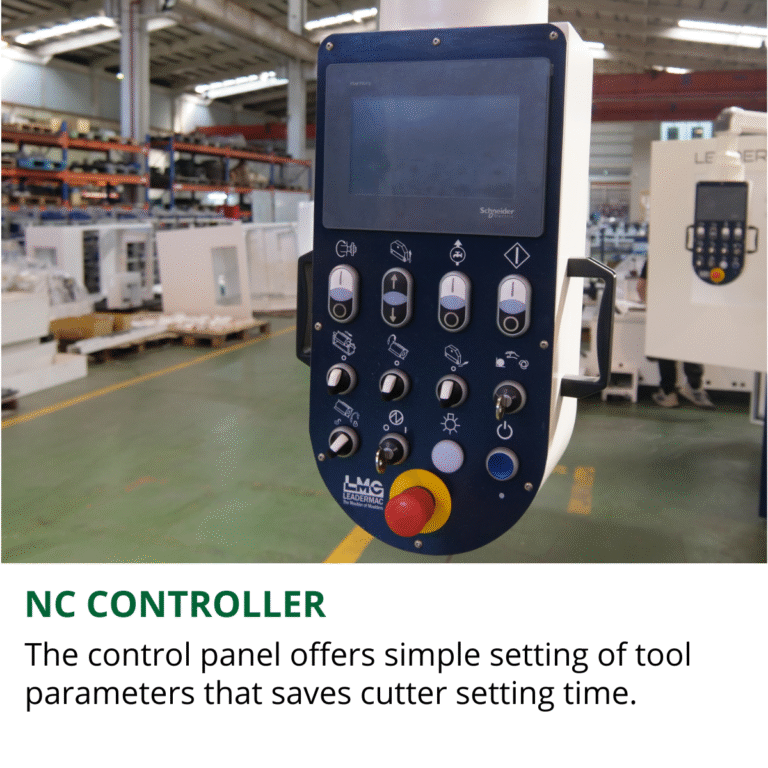

- The control panel offers simple setting of tool parameters that saves cutter setting time.
- Movable working light for added convenience.
FEATURES
TECHNICAL SPECIFICATIONS
| Grinding arbor | (Ø40mm or Ø50mm or Ø1-13/16″) (We only supply one kind of size for grinding arbor, please inform us which one you need when you order) |
| Maximum length of cutterhead (Mechanical & Hydrolock h.s.s. knife) | 320mm |
| Maximum cutting circle | 320mm |
| Minimum cutting circle | 125mm (all types) |
| Grinding wheel for straight knife (dia. x bore) | Ø175 x Ø25mm |
| Grinding wheel speed | 3000 R.P.M. |
| Grinding wheel drive | 2HP |
| Hydraulic motor | 1HP |
| Coolant pump | 1/4HP |
| Tank capacity | Max. 28 litres / Min. 16 litres |
| Worklamp | 6W |
| OPGA0001 | Straight knife spindle 3,000 r.p.m. → 3,000 r.p.m. ~ 6,000 r.p.m. (grinding wheel arbor: 2hp/inverter) |
| OPGA0011 | Sliding doors instead of tilting doors (linear-guide type, with 4 pcs) |
| VOLTAGE | 50HZ/415V |
| Maximum length of cutterhead | 320mm |
| Grinding arbor | 40mm or 50mm |
| Maximum cutting circle | 125-320mm |
| Grinding wheel | suitable for 25mm long cutters (face to be sharpened) |
| OPGB007 | Feedwork for the table / carriage by servo motor 750W instead of hydraulic cylinder (hydraulic system 1HP) |
| OPGB028 | Sliding doors instead of tilting doors (linear-guide type, with 4 pcs) |
BESPOKE FACTORY OPTIONS

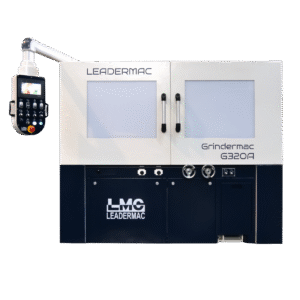

G320A
- The Grindermac G320A automatic cutter grinder is an advanced grinder, featuring fully automatic grinding operation. With the PLC control, high grinding accuracy is obtainable.
