SMARTMAC 5 head Moulder
THE LEADING EDGE IN 5-SIDE FRAME MOULDER
The LEADERMAC Smartmac Series 5-side moulder is designed to perform wood moulding more efficiently by optimizing the machine capacity.
Standard & Easy Set Option – IN STOCK IN THE UK
SMARTMAC 5 head Moulder
THE LEADING EDGE IN 5-SIDE FRAME MOULDER
The LEADERMAC Smartmac Series 5-side moulder is designed to perform wood moulding more efficiently by optimizing the machine capacity.
Standard & Easy Set Option – IN STOCK IN THE UK
OUTSTANDING FEATURES
- Sound & safety enclosure.
- Feed speeds go up to 24 metres per minute (80 feet per minute)
- The entire machine is covered to reduce noise & safety working environment.
- Harden chromed for entire feeding table.
- 0.3 mm Harden chromed on its surface to last its serving life.
- 3 Stage pressure setting of feed roller.
- Pneumatic roller pressure compensates for large variances in work piece Thickness.
- The max. Air pressure setting is 6 bar.
- Manual oil lubrication for feeding table.
- To supply oil on the 1 point of feeding table.
- 2 meter infeed table.
– Adjustment range for infeed table & edge-jointing fence is 10 mm.
– Infeed fence with reference engraving.
– Without hardened chrome for infeed fence & entire fence. - One piece case iron body.
– Heavy duty elements made of high quality cast metal with optimized - Vibration absorption characteristics are the best for the smooth-running feedwork & spindle performance.
- Power driven upper roller-steel rollers before top spindle, rubber rollers after top spindle under standard spindle arrangement & 2 units of bottom roller are equipped with power driven roller on the feed table.
- Both upper & bottom feed driven by carden universal joint drive with no chains prevent stock-free, more robust, low maintenance, longer service life & more accurate.
- Documentation.
– Maintenance manual, operation manual, electrical diagrams & parts list. - Without cutter tools.
- Tool box.
- To supply “CE” standard for electrical components & machines.
- Pressure controller for CE machine.
- The cover of machine with hooks for lifting the machine except universal machine.
- Adjustment range of vertical spindle (axial) max. 20mm..
- Adjustment range of horizontal spindle (axial) max. 20mm.
FEATURES
TECHNICAL SPECIFICATIONS
& OPTIONS INCLUDED
| STANDARD EQUIPMENT: | SMARTMAC 523S |
| Voltage | 50HZ/415V |
| Min/Max working width | 15 mm/230 mm (with a tool cutting circle of 140mm) |
| Min/Max. working Thicknesser | 10 mm/125 mm((with a tool cutting circle of 163mm) |
| Min. length of single work piece | 700mm |
| Min. length of work piece when feed consecutively | 260mm |
| 1st bottom spindle | 10HP, allowable cutting circle — 125 – 160 mm |
| 2nd right & 3rd left spindle | (with only 1 motor) – 10HP, allowable cutting circle — 112 – 180 mm |
| 4th top spindle | 15HP, allowable cutting circle — 112 – 200 mm |
| 5th bottom spindle | 15HP, allowable cutting circle — 112 – 200 mm |
| UP & DOWN motor | 1/2 HPx1 |
| Feed Motor | 5 HP/inverterx1 |
| Spindle diameter
Vertical Spindle Adjustment Horizontal Spindle Adjustment |
40 mm
Max 20mm. Max 20mm. |
* All specifications, dimensions and design characteristics are subject to change without notice.
| OPTIONAL EQUIPMENT: | |
| Infeed fence with hardened chrome | |
| Entire fence with hardened chrome | after 1st bottom spindle for 5 spindles machine |
| Pneumatic chip breaker on top spindle | |
| Moulding and multiple rip saw | at the 2nd bottom spindle for 230mm wide machine, including:
· 1 pce of table plate · 1 pce of table plate · 1 pce of fiber plate · 1 set of pressure plate with fiber |
| Mechanical digital readout | for horizontal adjustment of second bottom head adjusted from front side of the machine |
| Anti kickback device for splitting | |
| The dust hold 5″ on the sound enclosure | for 5 spindle machines |
| General grease gun | Red grease NO.2 |
| Mechanical double digital readout | “SIKO” brand instead of standard mechanical single digital readout (spindle 3,4) |
| Circuit breaker of transformer | use D type instead of standard C type |
| Spindle motor |
|
| Spindle motor use inverter brake instead of mechanical brake for motor | 10hp (380v~500v) (spindle 1, 2 & 3) |
| Spindle motor use inverter brake instead of mechanical brake for motor | 15hp (380v~500v) (spindle 4, 5) |
| COOLING FAN 10″ | |
| Shielding cable for inverter | 7.5hp/10hp (spindle 1, 2 & 3) |
| Shielding cable for inverter | 15HP/20HP (spindle 4, 5) |
BESPOKE FACTORY OPTIONS

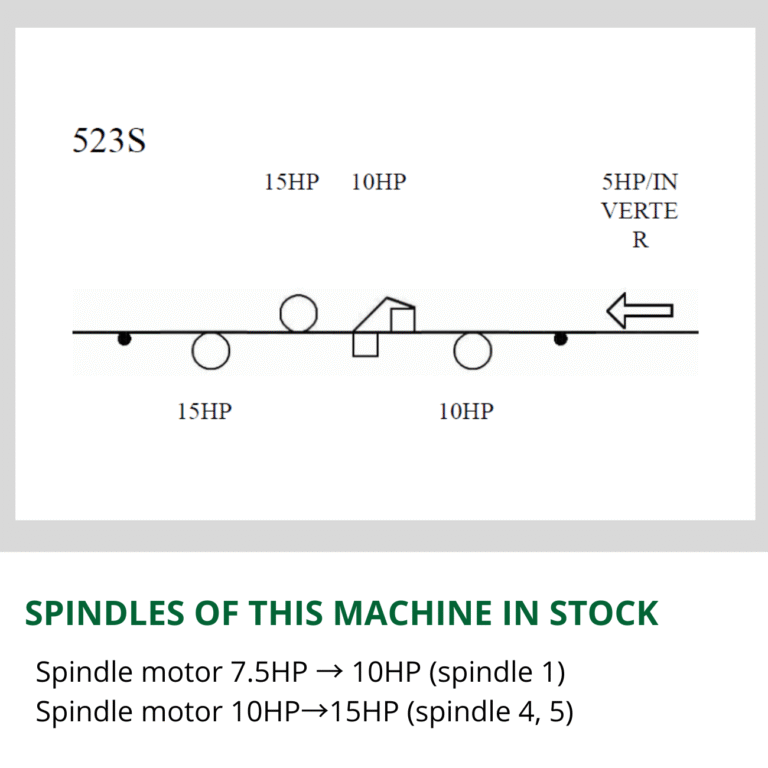

SPINDLES
CONTROLLER
