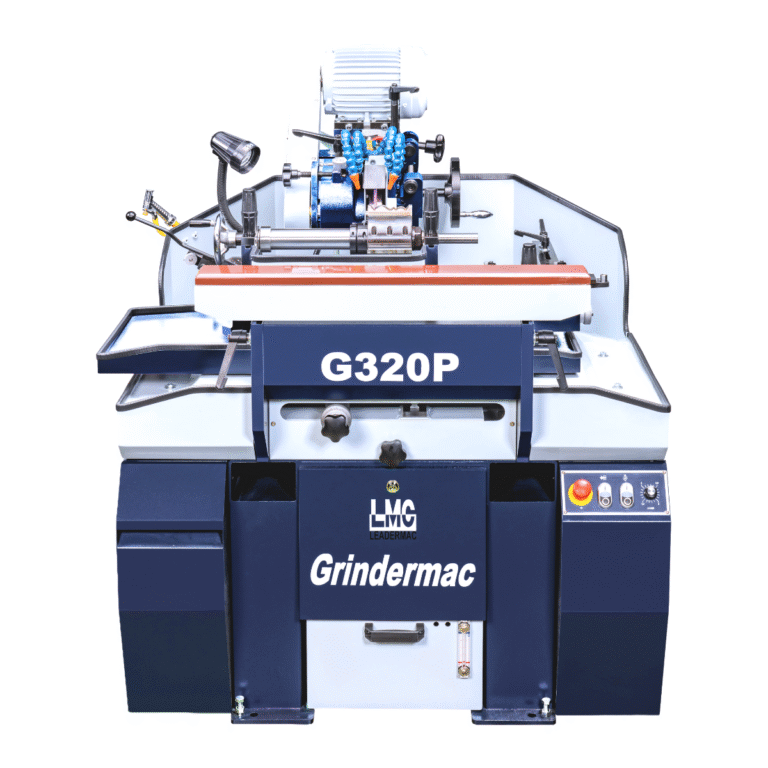

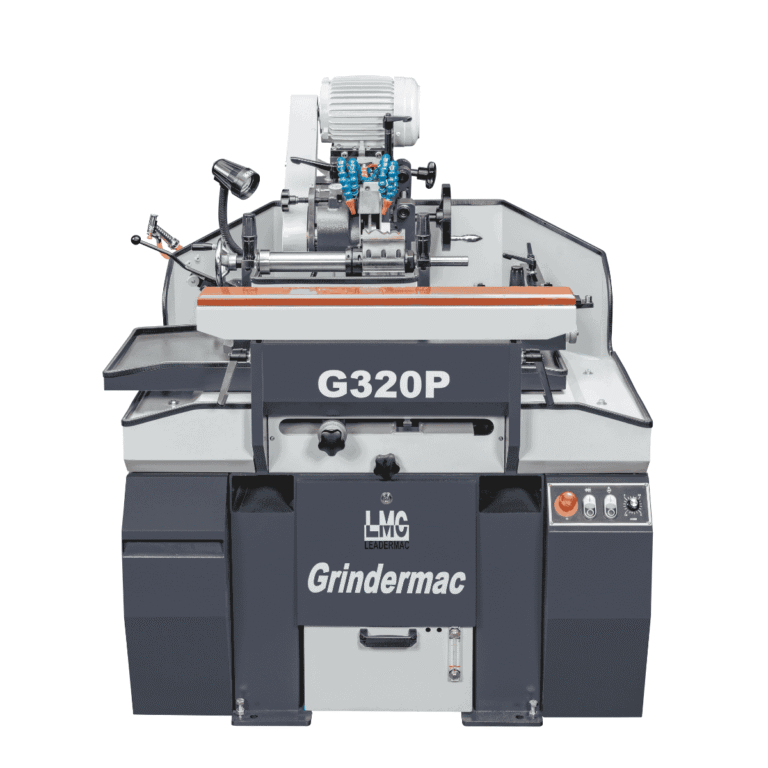

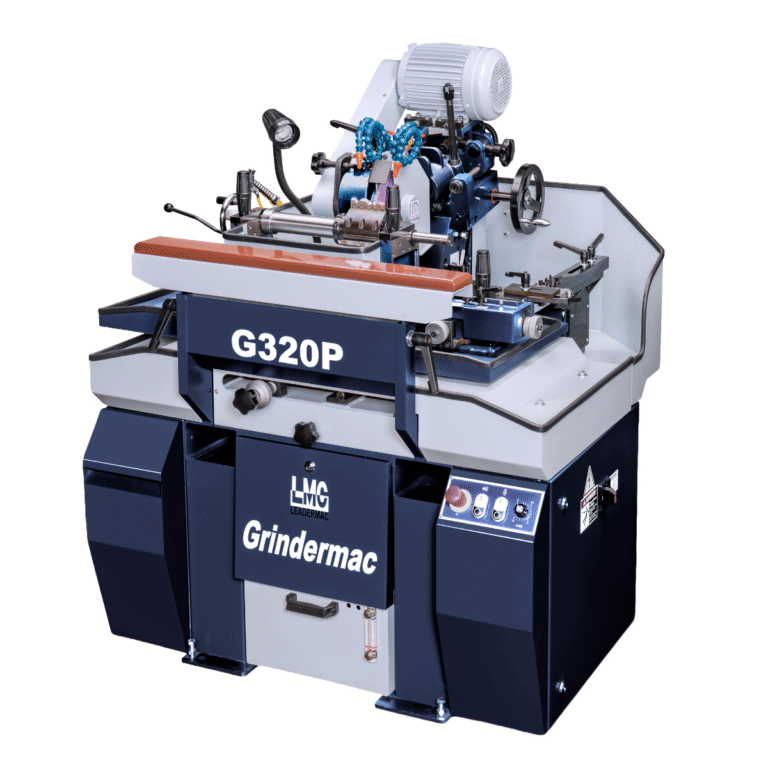

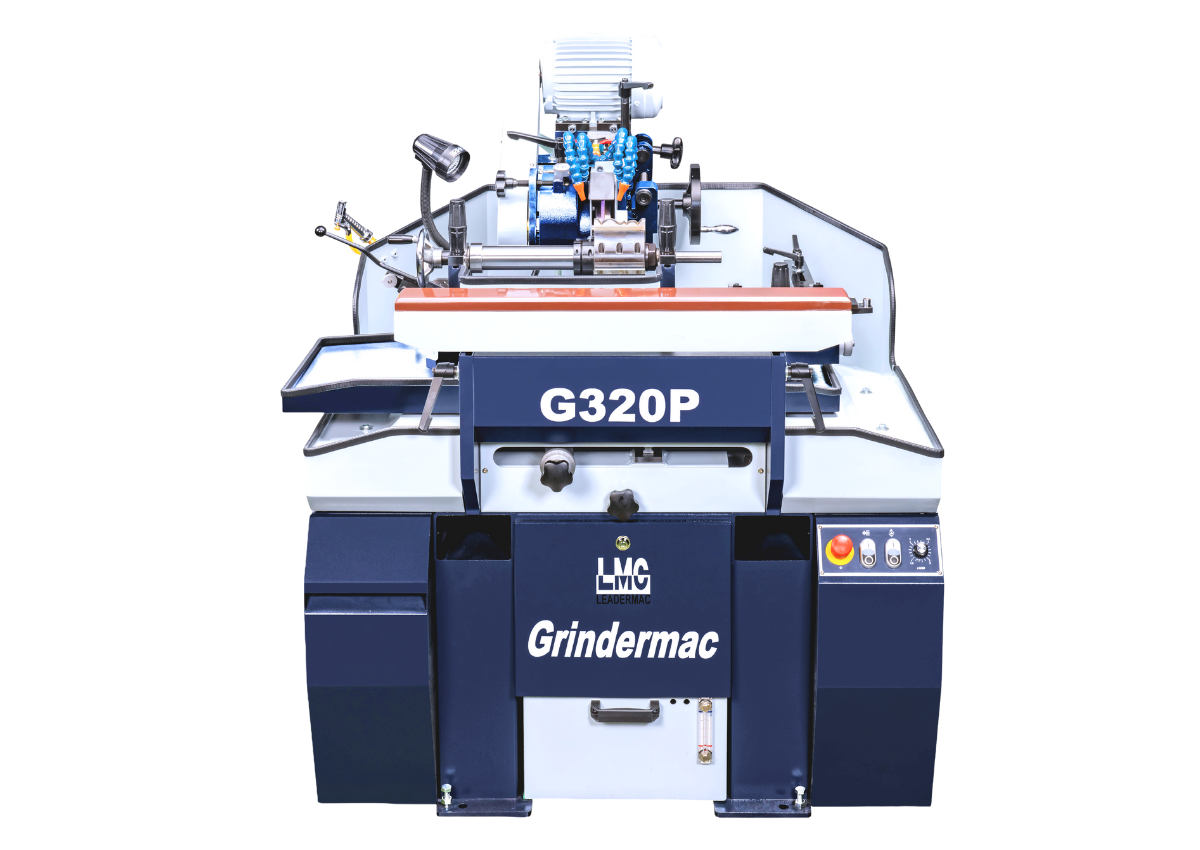

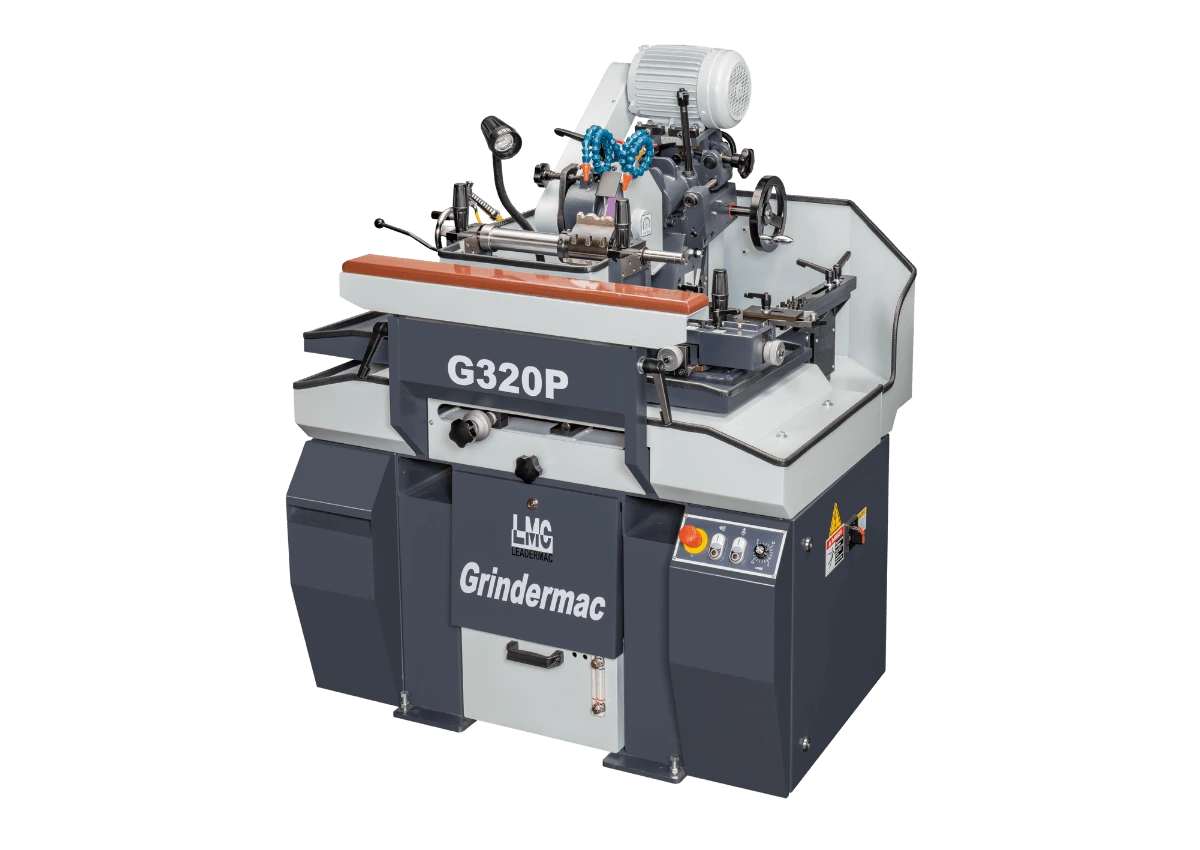

Profile Cutter Grinder
Ideal for maintaining consistent cutting quality, it uses a template system for accurate regrinding and features manual control with coolant for clean, safe operation.
G320P – IN STOCK IN THE UK
Profile Cutter Grinder
Ideal for maintaining consistent cutting quality, it uses a template system for accurate regrinding and features manual control with coolant for clean, safe operation.
G320P – IN STOCK IN THE UK
OUTSTANDING FEATURES
- This grinder is designed for sharpening and re-sharpening cutters used in the woodworking industry.
- Profile grinding shapes cutters to match specific timber moulding profiles.

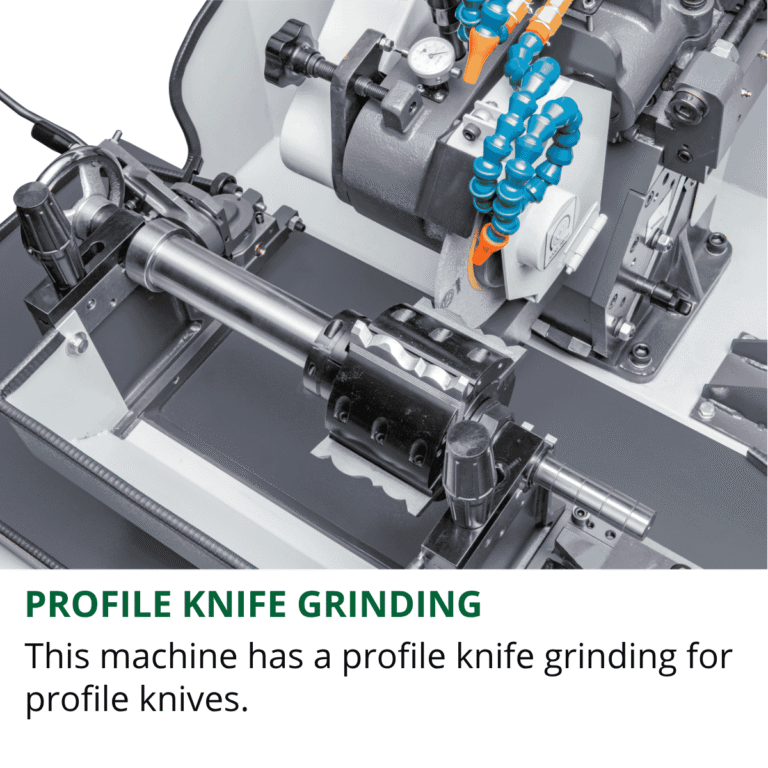

- Blank cutters are mounted in the cutter head, which is fixed onto the grinder.
- A 1:1 template ensures all knives are ground consistently.
- The finished cutter block, with multiple knives, is ready to use without further adjustment.

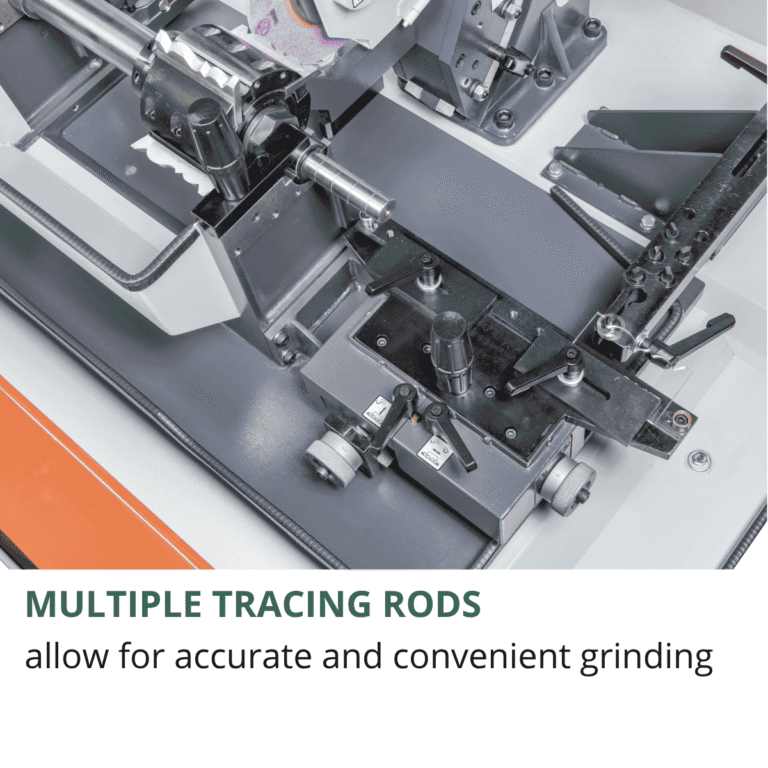

- A bi-linear carriage holds the cutter head, template, and dressing unit.

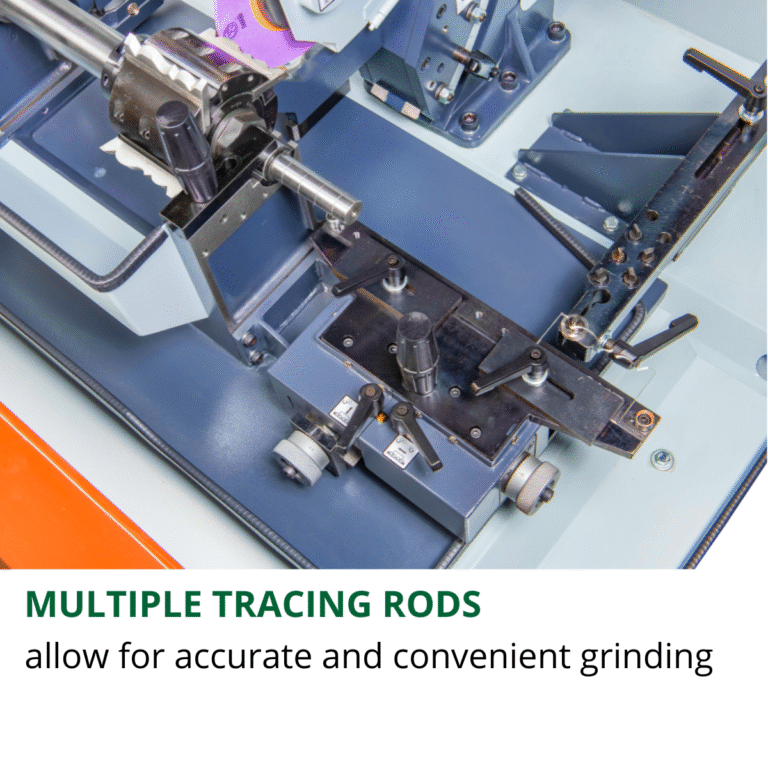

- The cutter rest sits in front of the grinding wheel, with the stylus to the right of the head.
- The grinding wheel is dressed to match the template via the stylus.
- Grinding is manually controlled, with the operator guiding both the cutter and template.
- A wet coolant system prevents overheating and clears debris.
- The machine is not suitable for grinding aluminium, magnesium, or use in explosive environments.
- The machine conforms to CE safety regulations
FEATURES
TECHNICAL SPECIFICATIONS
| Profile Cutter Grinder | G320P |
| Weight (Net) | 650 kg |
| Motor Power | 2hp |
| Coolant Pump | ¼hp |
| Arbor Dia | 40mm |
| Max length of cutter head | 320mm |
| Tank capacity | 18-36ltrs |
| Max cutting circle | 350mm |
| Min cutting circle | 70mm |
| Worklamp | 20w |
| Maximum depth of profile | 40 mm |
| Grinding wheel | Diameter 230mm
Width 5mm Dressed width 4.7 mm or 3.0 mm Bore 31.75 mm – 60mm |
| Spindle Speeds – Variable speed | 1500 – 3000 rpm |
| Motor outputs – Grinding spindle | 1.5 Kw |
| Machine dimensions (HxWxD) | 1580 x 1150 x 1150 mm |
BESPOKE FACTORY OPTIONS

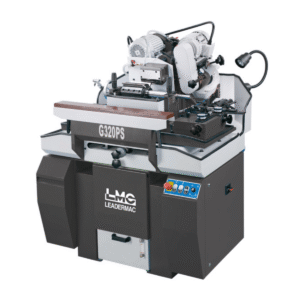

G320PS
- For profile and straight knives.
- This machine is also capable of grinding various straight knives.
- Easy to convert without need of changing any part.
- This function eliminates manual adjustment for added convenience.

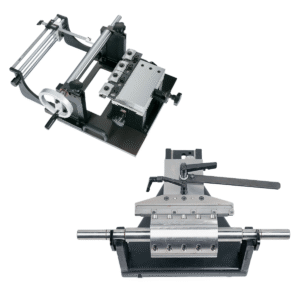

Tool Calibration Device
- A tool calibration device can be supplied for the convenient and accurate calibration of each cutter head, thus ensuring perfect cutter head running.
