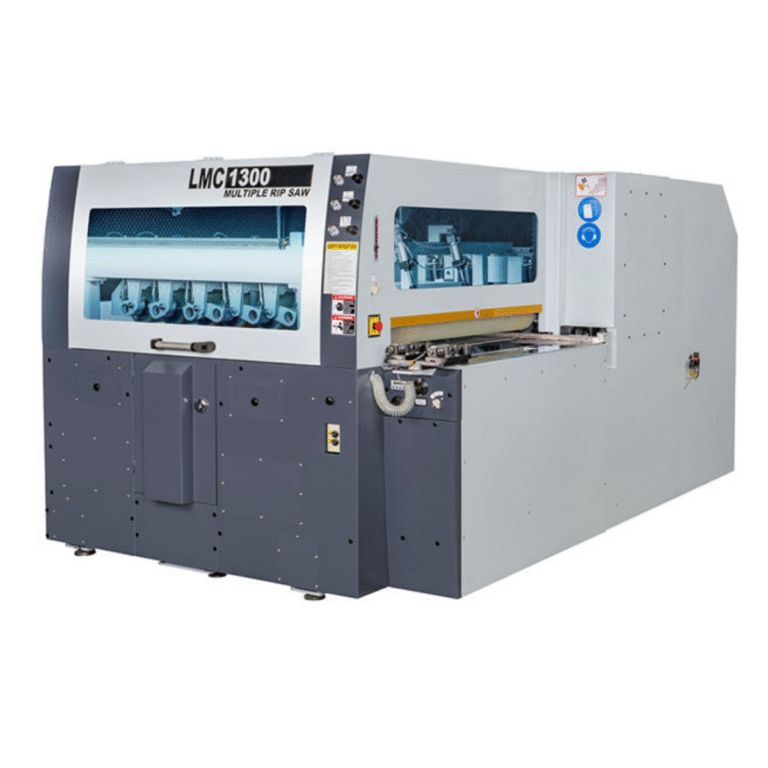

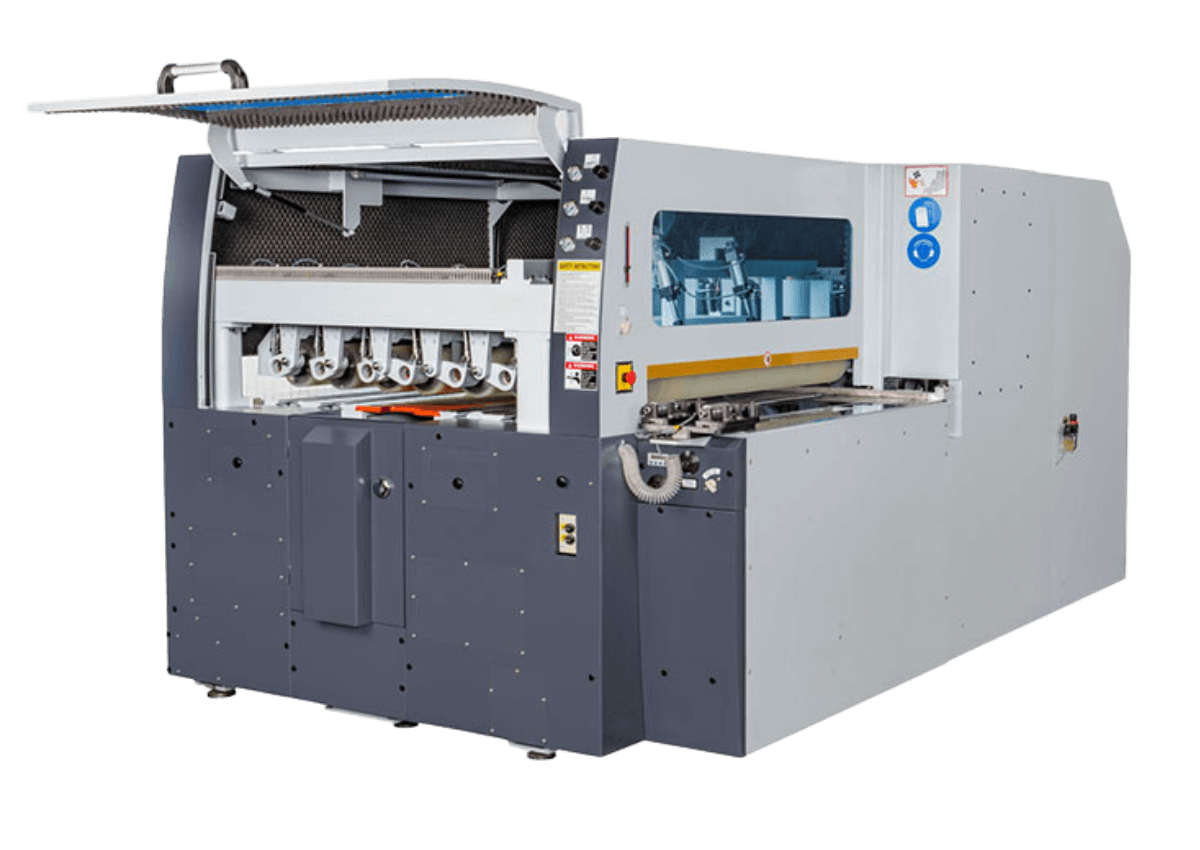

Multi Rip Saw – Multiple

Models are constructed with bottom multiple rip saws

Models are constructed with bottom multiple rip saws

OUTSTANDING FEATURES

6 top rollers with pneumatic pressure system for smooth and stable feeding.
4 bottom feed rollers for powerful infeed movement.

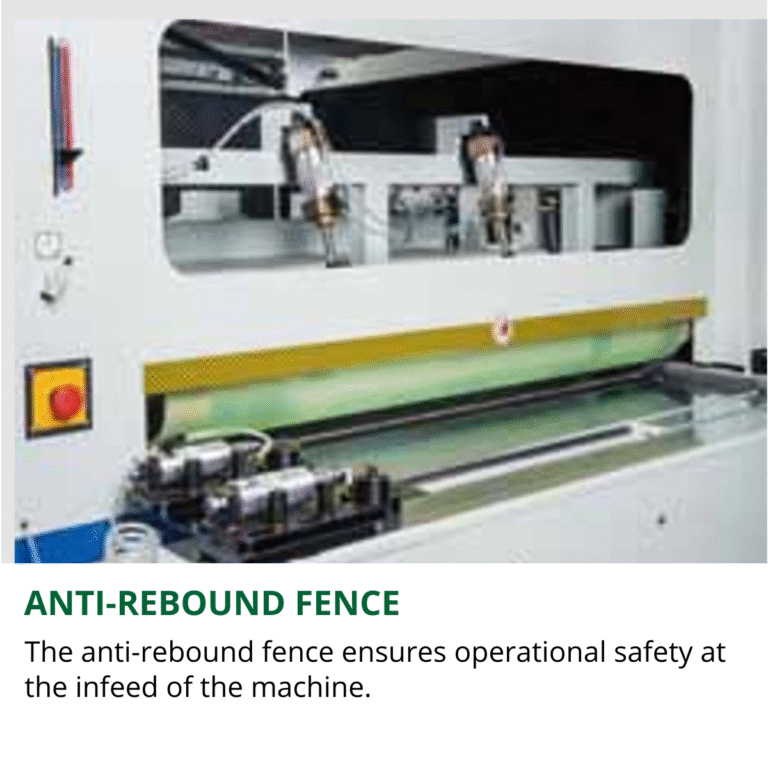

The anti-rebound fence located on the infeed ensures operational safety.

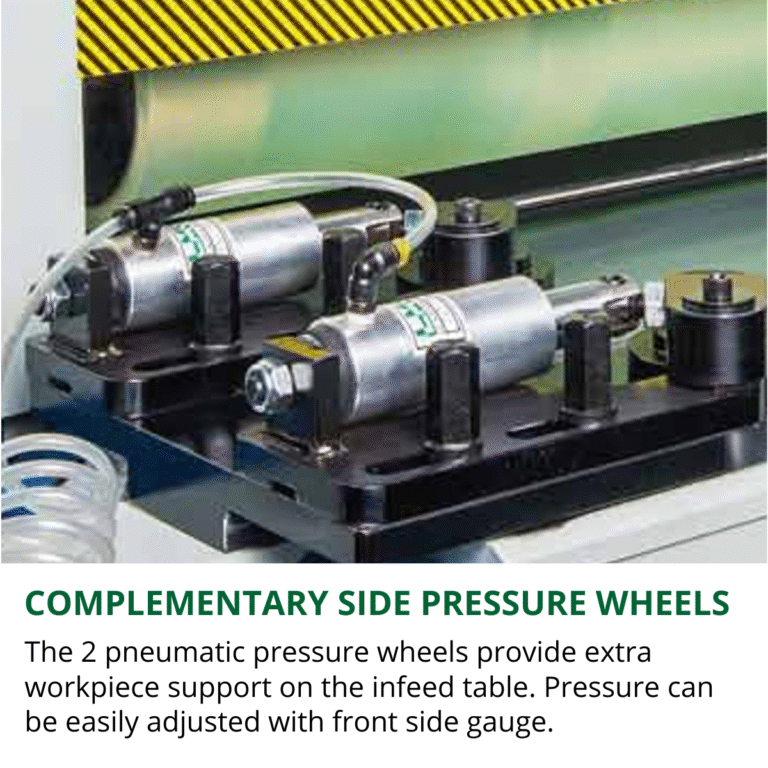

The infeed table is equipped with 1 auxiliary roller and 2 side pressure wheels.
Hard chromed table for maximum resistance and durability.
3 central dust hoods (6’’ each) are used for dust collection.
Inverter control for infinitely variable feeding speed.
75HP powerful saw drive motor is suitable for heavy-duty cutting (100HP opt.)
Fast feeding speed up to 24m/Min (Optional).
Ruggedly constructed for maximum rigidity and stability.
Full safety enclosure with noise reduction.
Powered elevation of feed rollers for convenient setting.
The pressure gauges are mounted on the front side for easy adjustment.

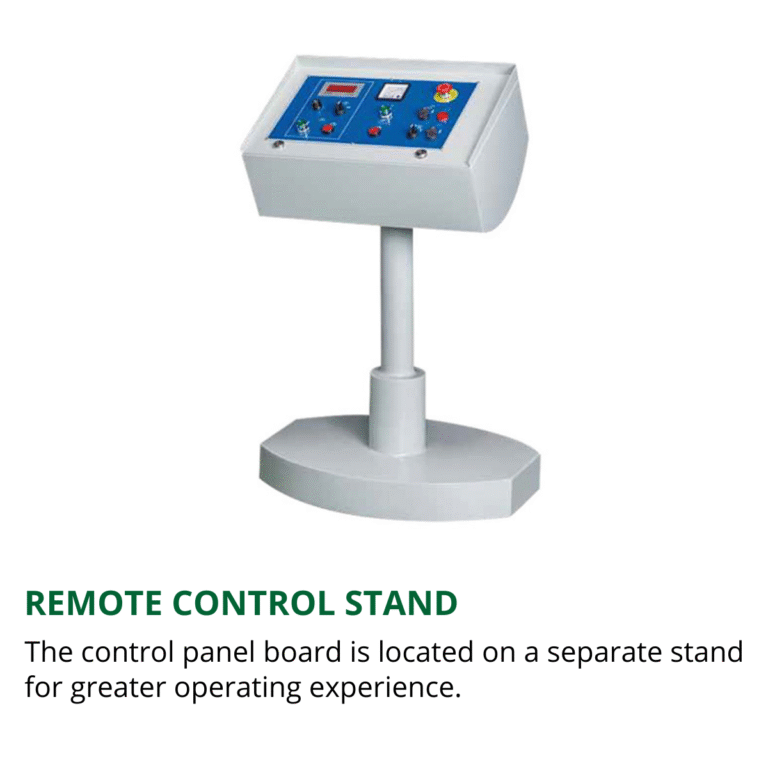

Remote control stand for greater operating experience.

STANDARD EQUIPMENT:

Maximum width of cut	1300 mm (51”)
Maximum thickness of cut	50 mm
Sawblade diameter	Ø10” (12” Opt)
Saw arbor diameter	Ø80 mm
Feed speed (Infinitely variable)	6 -15 M/min (24 M/min Opt) (inverted motor)
Saw blade speed	3200 RPM
Saw drive motor	75 HP (100 HP Opt)
Feed roller elevation motor	I HP
Feed roller drive motor	7.5HP
Net weight	3800 kgs
Gross weight	4200 kgs
Packing dimensions	3250(L) x 2350(W) x 2100(H)

* All specifications, dimensions and design characteristics are subject to change without notice.

Three-Dimensional Working Drawing
