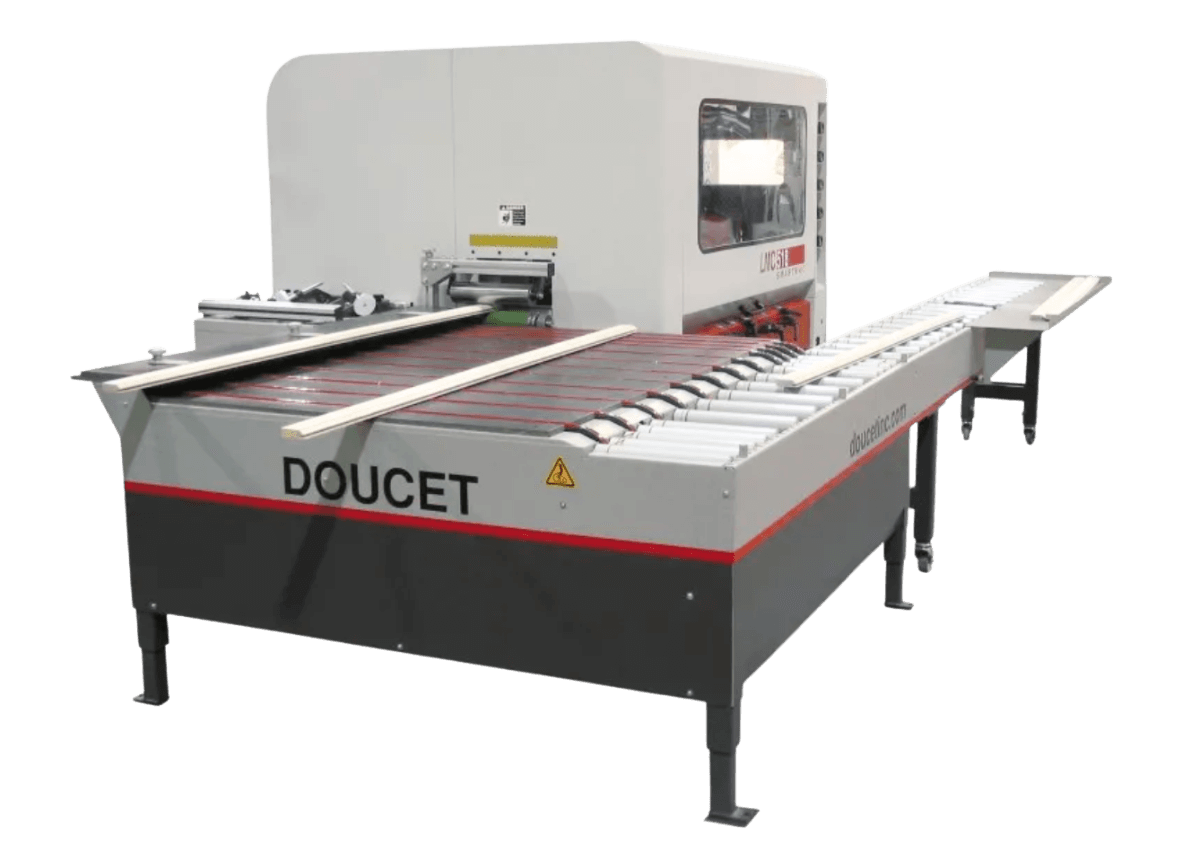

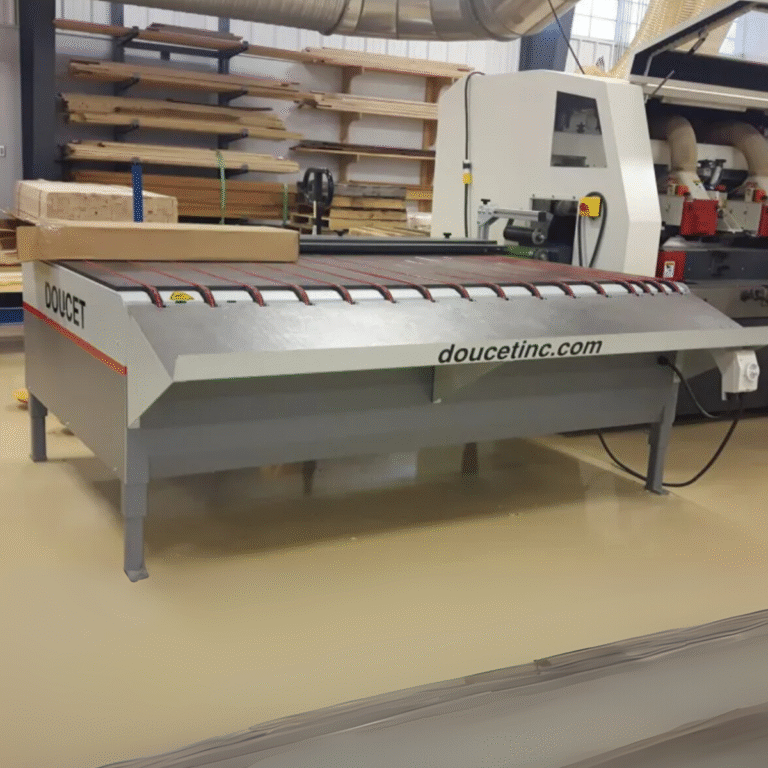

MR Moulder Return Conveyor
Stop wasting talent at the end of your moulder.
Specially designed to handle the fast pace of end-to-end facing on Moulders, the Doucet MR Moulder Return Conveyor enables you to run your moulder with just one operator.
MR Moulder Return Conveyor
Stop wasting talent at the end of your moulder.
Specially designed to handle the fast pace of end-to-end facing on Moulders, the Doucet MR Moulder Return Conveyor enables you to run your moulder with just one operator.
OUTSTANDING FEATURES
- The MR Return Conveyor is suitable for applications with a feed rate up to 80 feet per minute.

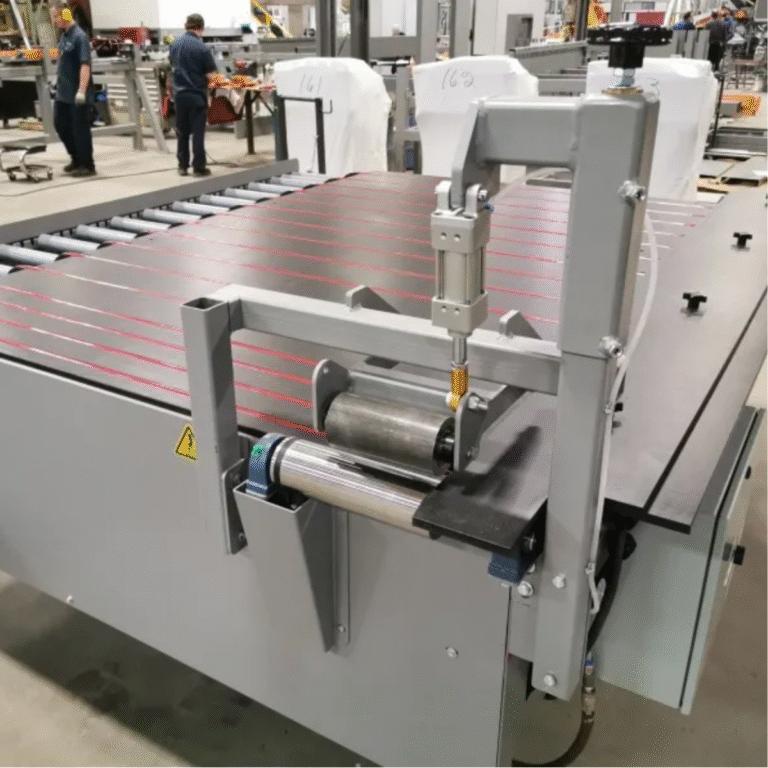

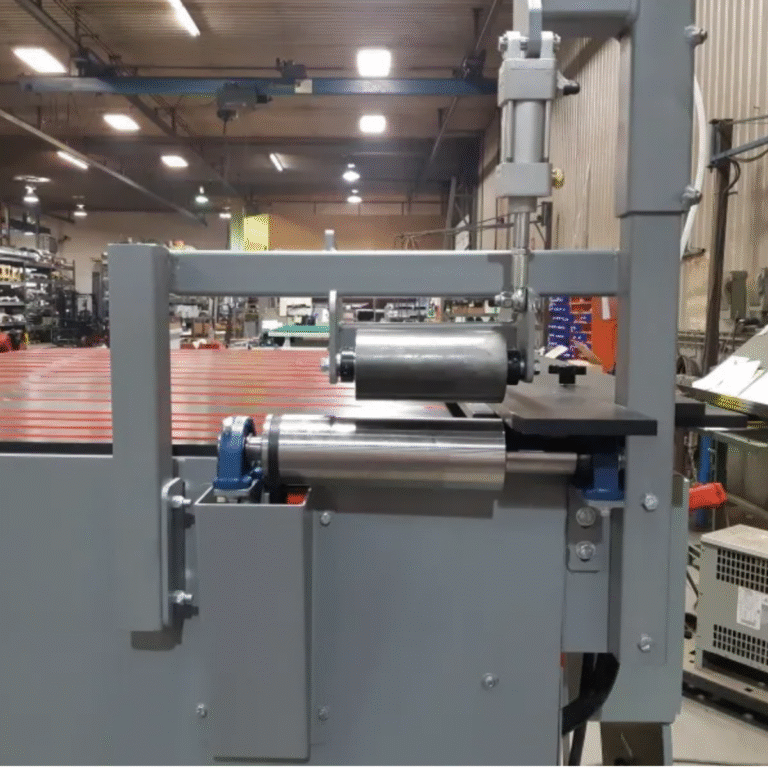

- A pair of rollers, driven by a variable speed motor, guides the boards exiting the moulder towards the receiving module

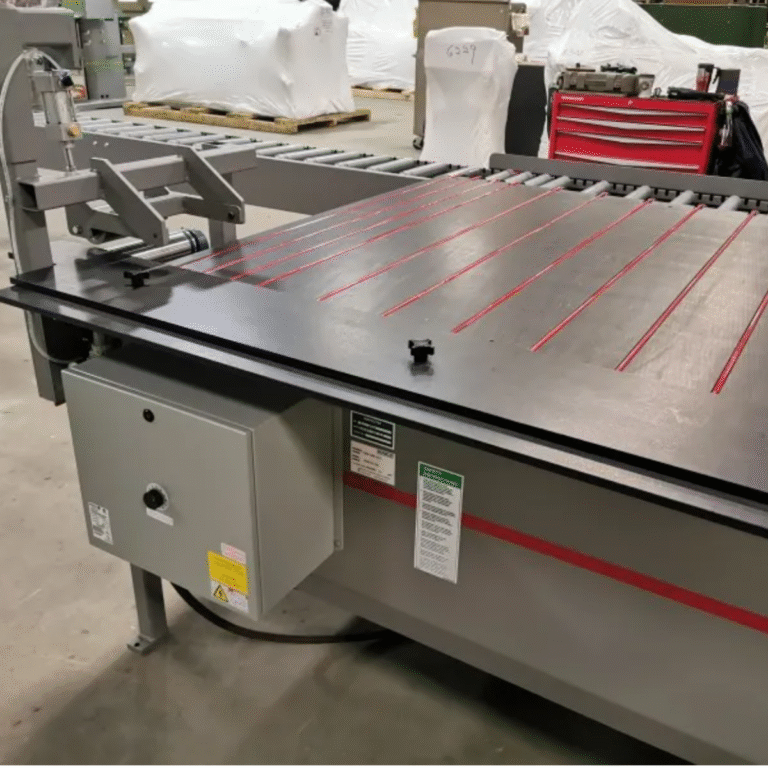

- Boards entering the receiving table are supported by an adjustable ledge in the continuation of the mouder’s fence
- Once the boards exit the feed rollers, they are released by gravity to transfer below the ledge. Then, side-shifted to the return rollers quickly and efficiently

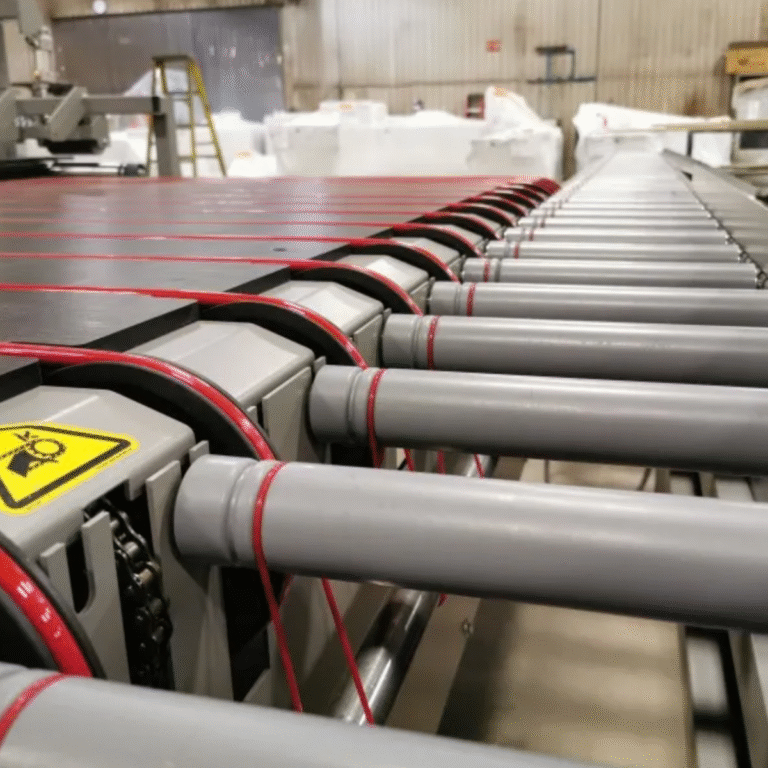

- The return rollers, made of heavy PVC, are individually driven by welded urethane belts
- The transfer process occurs on a continuous basis, eliminating functional limitations typical of return devices with multiple “cycle” steps
FEATURES
TECHNICAL SPECIFICATIONS
- Available in three models: MR-8, MR-12 and MR-16.
- All models feature a 48″ wide receiving module and return rollers are 12″ wide; their length is proportionate to the length of your moulder
BESPOKE FACTORY OPTIONS
The MR Return Conveyor is available in three models: MR-8, MR-12 and MR-16:
- The MR-8 model features a 60″ long receiving module that is suitable for boards up to 96″ long
- The MR-12 features a 84″ long receiving module that is suitable for boards up to 144″ long
- The MR-16 features a 120″ long receiving module that is suitable for boards up to 192″ long

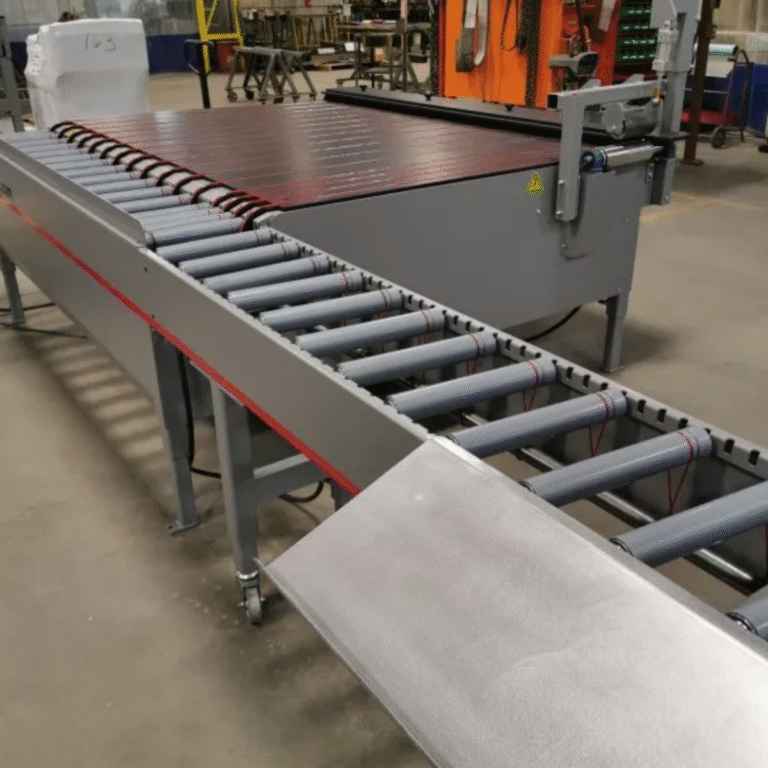

- Accumulation table can be located on the left side of return conveyor or at the end of return conveyor
- Quick release disconnect on caster mounting for return section
- Main module on caster mounting
