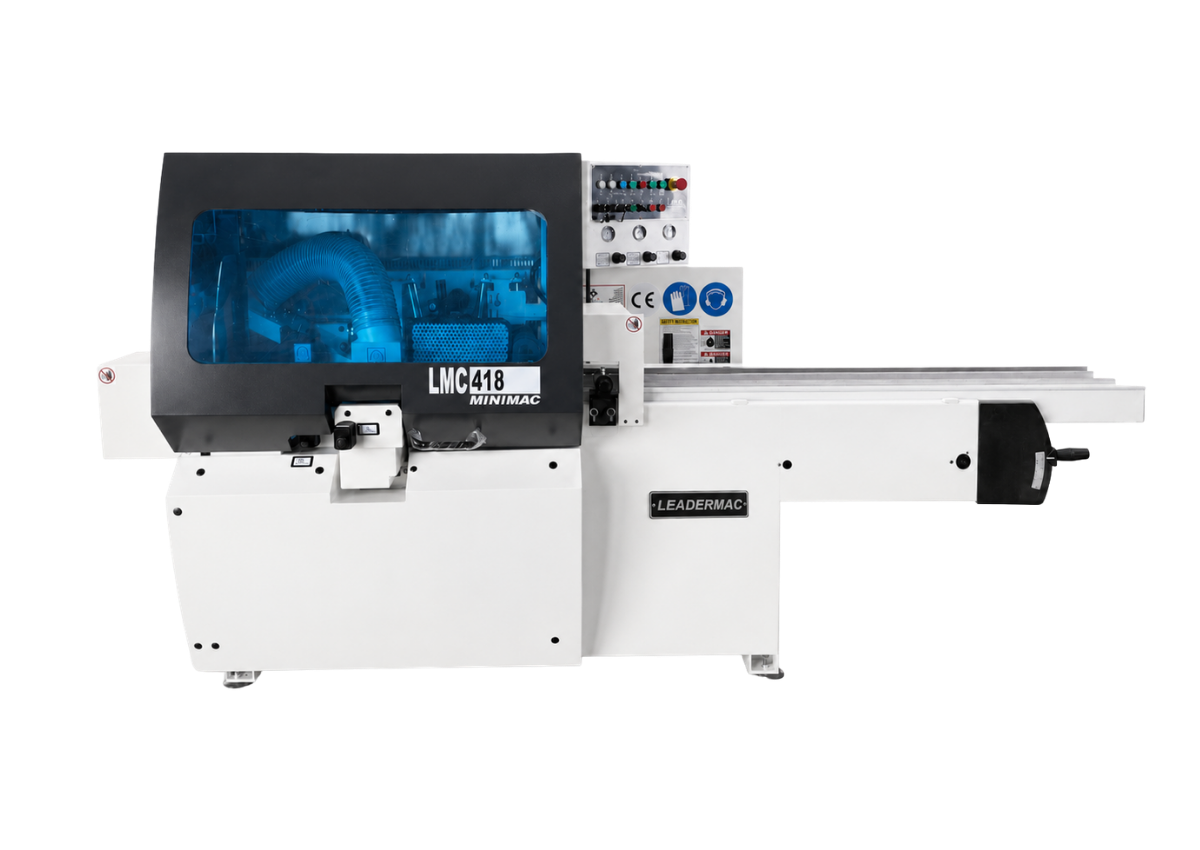

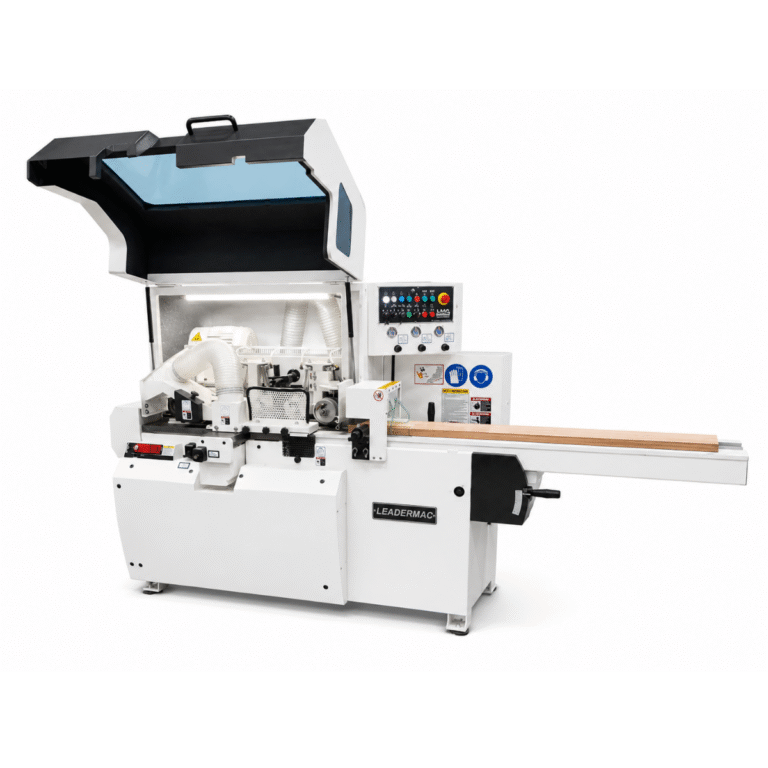

Leadermac MINIMAC 418 Four-Sided Planer Moulder
Compact four-spindle planer moulder for processing all four faces in one pass.
Leadermac MINIMAC 418 Four-Sided Planer Moulder
Compact four-spindle planer moulder for processing all four faces in one pass.
OUTSTANDING FEATURES
- Compact four-spindle planer moulder for processing all four faces in one pass.
- Working width from 20 to 180 mm and working thickness from 10 to 100 mm.
- Four-spindle arrangement: bottom, right, left and top.
- Two 10 HP spindle drive motors as standard, with optional 15 HP upgrades.
- CE-standard electrical components and machine construction.
- IE3 motors, inverter braking, shielded cabling, cooling fan and power distribution block.
- Robust steel machine body.
- Sound-reducing safety enclosure for a safer working environment.
- Powered upper feed rollers, with steel rollers before and rubber rollers after the top spindle.
- Standard cutter tooling, operation and maintenance manuals, electrical drawings, parts list and toolbox included.
FEATURES
TECHNICAL SPECIFICATIONS
| 1st bottom & 4th top spindle(with only 1 motor) | 10HP, allowable cutting circle — 100 mm |
|---|---|
| 2nd right & 3rd left spindle(with only 1 motor) | 10HP, allowable cutting circle — 100 mm |
| Feed motor | 2 HP/inverter x1 |
| Feed Speed, Infintely variable | 6 – 10 M/ min. |
| Max.Working Thickness: | 100 mm |
| Max.Working Width | 180 mm |
| Min. Working Width | 20mm |
| Min.Working Thickness | 10 mm |
| Spindle diamter | 35 mm |
| Spindle R.P.M | 6,000 R.P.M. |
| Up & Down Motor | 1/2 HPx1 |
BESPOKE FACTORY OPTIONS
- OPMI0006 Infeed table with flat instead of standard infeed table
- OPMI0007 Infeed table with hardened chrome
- Motor Horsepower
- First Bottom Horizontal Spindle Motor
- OPMI0003 Spindle motor 10hp → 15hp
- Fence/Near Vertical Spindle Motor
- OPMI0003 Spindle motor 10hp → 15hp
