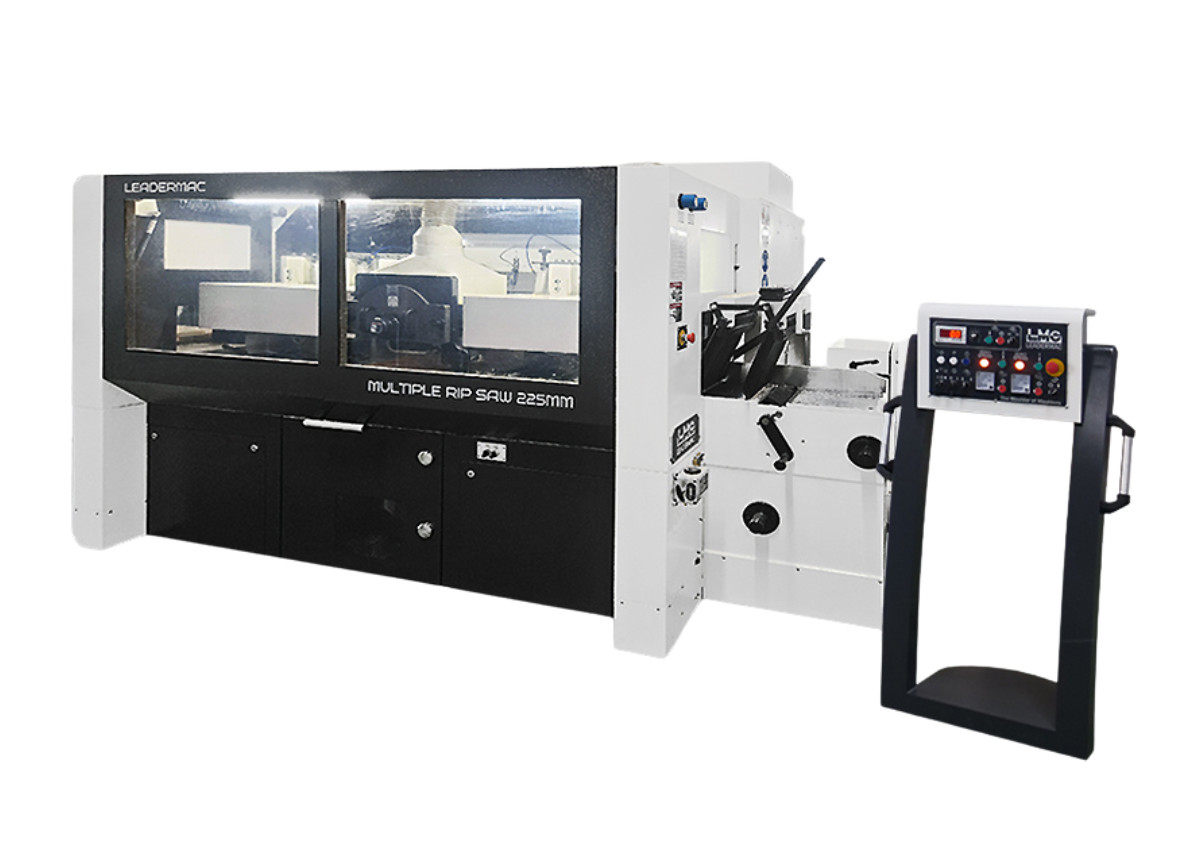

Leadermac 225MM Top & Bottom Multiple Ripsaw
Built for high-performance environments, this machine delivers exceptional efficiency and precision.
Whether you’re aiming to maximise throughput or refine accuracy, the LMC 225MM provides the power and dependability you need to maintain a competitive edge.
Leadermac 225MM Top & Bottom Multiple Ripsaw
Built for high-performance environments, this machine delivers exceptional efficiency and precision.
Whether you’re aiming to maximise throughput or refine accuracy, the LMC 225MM provides the power and dependability you need to maintain a competitive edge.
OUTSTANDING FEATURES

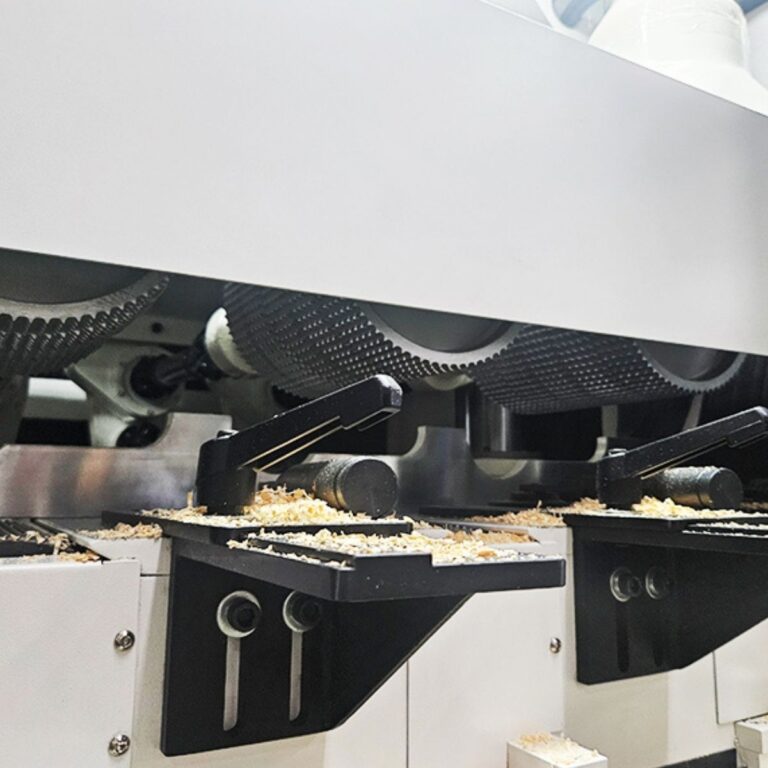

- Spring-loaded side pressure roller for the infeed table
- Bottom steel feed rollers adjustable up and down using a wrench
- Additional top anti-kickback device for splitting operations
- Newly reinforced anti-kickback device design for enhanced safety
- Increased finger thickness from 6 mm to 9 mm
- Spacers added to all fingers
- Finger angle adjusted from 21° to 35°
- Finger material upgraded from SS41 to S45C
- Bar (shaft) diameter increased from 19 mm to 25 mm
- Shortened bottom fingers to prevent catching beneath the table
- Additional safety switch on the rear door to prevent saw blades from colliding with the feed rollers
- Improved dual bottom dust hood for greater extraction efficiency
- Outboard support bracket for 225 mm components
- Bottom cover fitted with an additional filter tray and a 6” ventilation port

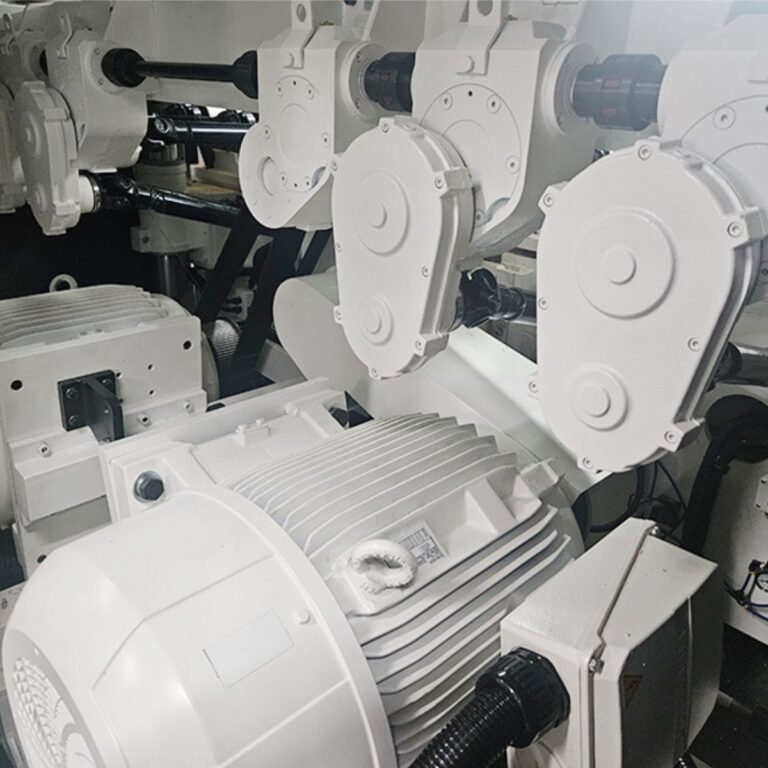

- Upgraded drive system utilising a cogged belt with motor and spindle pulleys, replacing the standard belt for increased durability
- Timing belt and timing pulley fitted
- Arbor drive now features a driven shaft with a larger end diameter and extended shaft length
- Outfeed guard specifically designed for the LMC225MM model
- Individual dust extraction hoses, clamps, and flanges provided for each spindle
- Ammeter fitted for electrical load monitoring
- Electrical cabinet supplied with extended 3-metre cables for flexible installation
- Mobile control unit with a 7-metre cable for convenient operation
- Remote hand pendant control for feed roller direction (forward/reverse), replacing the standard fixed control
- Safety limit switch on the rear door – the machine stops automatically when either of the two doors is opened
- Air pressure regulation for precise control
- Zero-speed sensing system with integrated safety module
- 75 HP spindle motor equipped with inverter brake (280V~500V)
- Integrated 10” cooling fan for effective thermal management
FEATURES
TECHNICAL SPECIFICATIONS
| Working width | 35 – 250 mm / 1.37 – 9.84” |
| Working thickness | 20 – 200 mm / .787 – 7.87” |
| Min. length of single work piece | 1000 mm / 39.37” |
| Min. length of work piece when fed consecutively | 700 mm / 27.56” |

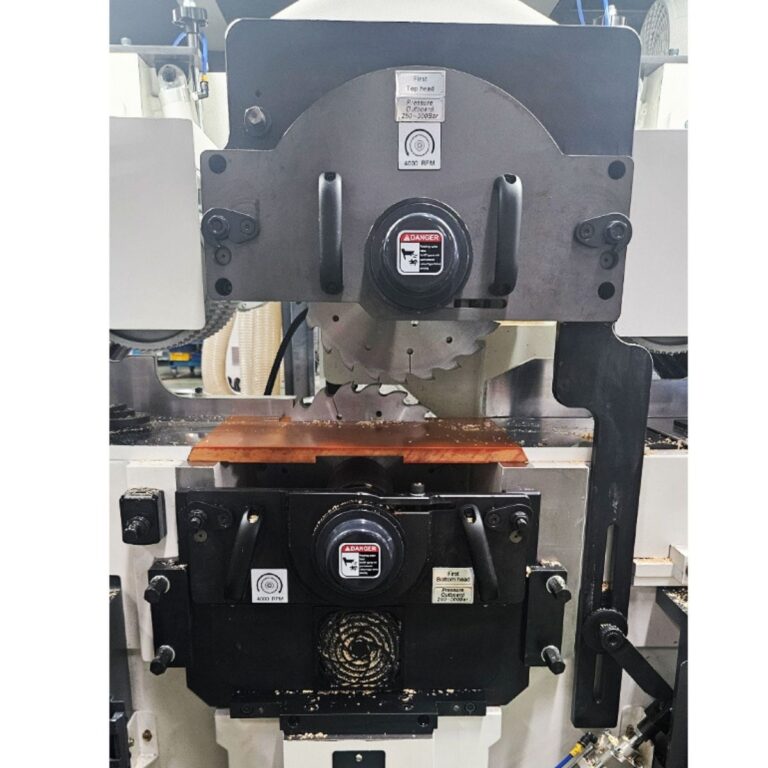

| 1st top rip saw spindle | 75 HP |
| 1st bottom rip saw spindle | 75 HP |
| Allowable saw blade circle | 355 mm |
| Up and down motor | ¾ HP |
| Feed motor | 30 HP, inverter |
| Spindle diameter | 50 mm (sleeve diameter 70 mm with two keyways 20 mm x 5 mm) |
| Spindle RPM | 4,000 RPM |
| Feed speed | 12 – 120 m/min / 40 – 400 fpm infinitely variable |
| Electrics | 460V / 60 Hz |
