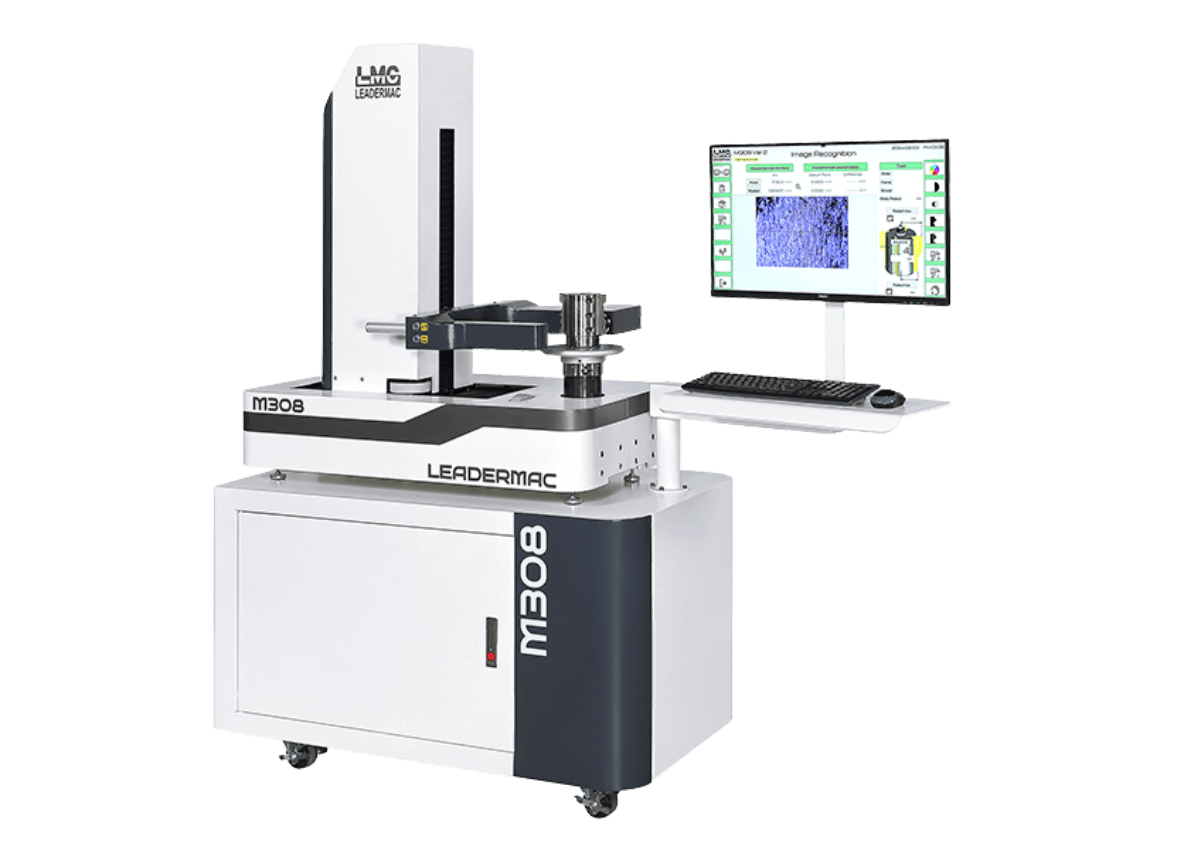

HSK – M308 Electronic cutterhead measurement stand

Tool Setting and Measuring Device

Tool Setting and Measuring Device

OUTSTANDING FEATURES

Two-Axis Electronic Measurement: Accurately measures X and Y positions of knife features using non-contact video and digital technology.
High-Resolution Visual Inspection: Equipped with a 19″ colour LCD panel and 22x magnification for detailed viewing of cutting edges and grind quality.

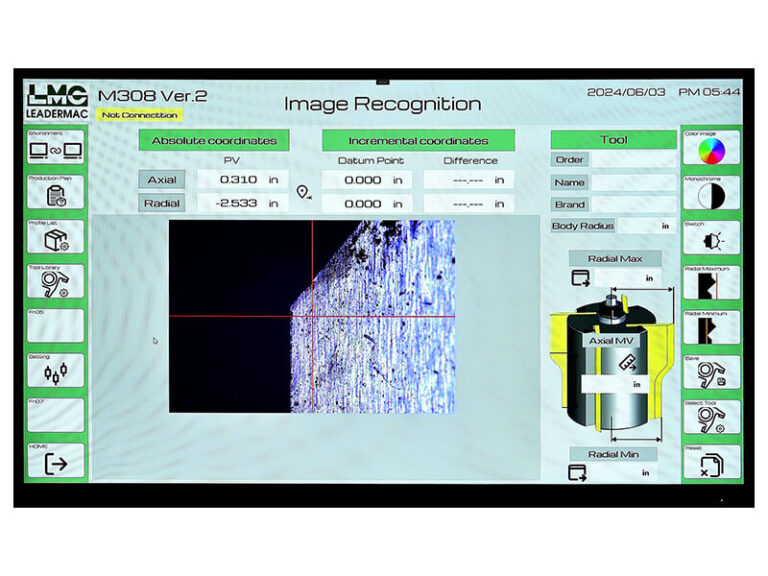

Built-In Digital Readout: Calculates radius and length measurements in addition to standard X and Y data.

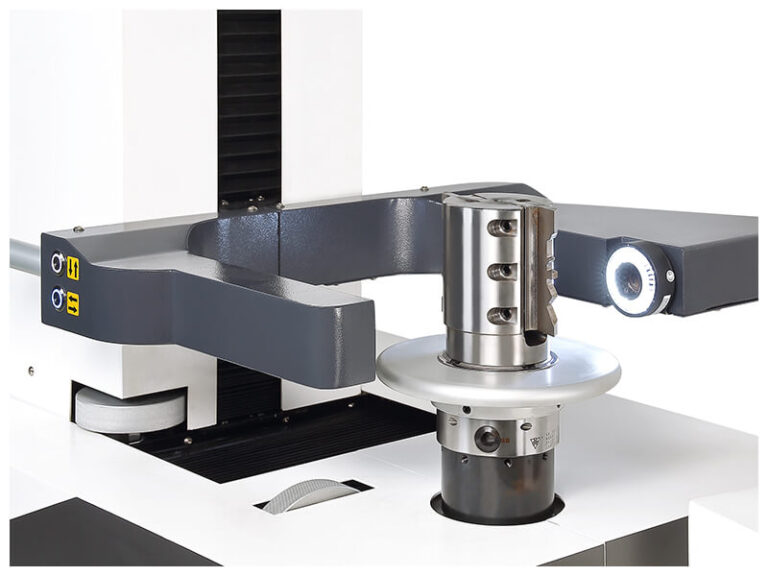

Versatile and Robust Design: Supports cutterheads up to 320mm in diameter and up to 50kg in weight, with a sliding platform for easy positioning.
Perfect Companion for uPower: Simplifies and speeds up cutterhead changes and profile set-ups, ensuring maximum uptime and production flexibility.

Measurement Axes	X and Y (2-axis)
Measurement Technology	Non-contact video and digital
Measurement Accuracy	±0.01 mm
Magnification	22x
Display	19-inch colour LCD panel
Radius & Length Calculation	Built-in via Digital Readout
Maximum Cutterhead Diameter	Up to 320 mm (minimum size)
Maximum Cutterhead Weight	Up to 50 kg
Sliding Platform	Yes – accommodates various cutter sizes
Arbor Inclusion	Not included (available as an option)
Power Supply	110–220 VAC

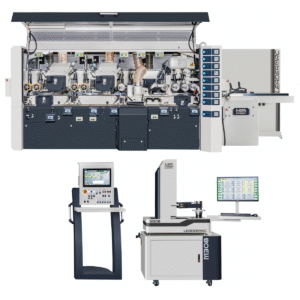

Ideal companion to the uPower Planer Moulder
